Round / Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards

China Round / Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards supplier

Large Image :  Round / Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards

Product Details:

Place of Origin: China
Brand Name: Polestar/According to customer's demand
Certification: ISO/ROHS/SGS

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: As your requirment
Delivery Time: 10~30 working days after received prepayment
Payment Terms: T/T, L/C or western Union
Supply Ability: 3,000K pcs per month
Detailed Product Description
Item: Swage Spacer Material: Brass, Aluminum, Stainless Steel, Carbon Steel
Inner Diameter: Usually .063 To .194 Finish: Available In 28 Finishes
Length Tolerance: +/-0.005" Thread: -80 Through 10-32 / Internal Thread- Class UNC 2B

Round Or Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards



Quick Detail:

Swage Standoffs & Swage Spacers 1/8" thru 3/8", 3mm thru 10mm- Lengths: 1/32" thru 1", .5mm up to 51mm- Shank Lengths: .062 thru .295.


Polestar swages round- hex, 28 finishes, available in brass, aluminum, stainless steel, carbon steel. An inexpensive method of spacing or mounting electronic circuit boards and electronic components.





Description:



Much like their counterpart, swage spacer, the swage standoff is also used to create distance between object. Typically this style of parts are predominately used in curcuit board applications. Where the swage portion of the part is inserted (swaged) into previously mentioned board and another board is spaced properly. The female end of the swage standoff accepts a thread male part, most times a screw but could also be Male-Female Standoff. These parts are excellent to use when circuit boards are stacked one on top of another. Below is a list of standard swage standoffs parts we supply.



DIAMETER: 1/8" / 5/32" / 3/16" / 1/4" / 5/16" / 3/8"
SHAPE: Round and Hex
MATERIAL: Brass, Aluminum, Stainless Steel, Carbon Steel
BODY LENGTH: Wide variety of lengths- 1/32" (.031) increments up to 1"
SHANK LENGTH: Wide variety of lengths ranging from .062 through .295
FINISH: Available in 28 finishes
THREAD: 0-80 through 10-32 / Internal Thread- Class UNC 2B
INSIDE HOLE DIAMETER: Ranging from .063 through .194 for screw sizes
0-80 through 10-32
TOLERANCE: Body Length: ± .005 / Shank Length: ± .003 Inside Hole Diameter: + .000 - .003
Diameter: Standard commercial bar stock tolerances



We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department.

Swage Standoffs & Swage Spacers 1/8" thru 3/8", 3mm thru 10mm- Lengths: 1/32" thru 1", .5mm up to 51mm- Shank Lengths: .062 thru .295.
Polestar swages round- hex, 28 finishes, available in brass, aluminum, stainless steel, carbon steel. An inexpensive method of spacing or mounting electronic circuit boards and electronic components.

After installation they are permanently affixed to the board and further assembly becomes simplified. Installation is accomplished by using any means of force. Normal equipment, such as an arbor press, punch press, are most commonly used. If swaging is planned, the hole must be countersunk. For rivet type installation, an ordinary drilled or punched hole, of the correct diameter, is adequate. Available in both threaded and unthreaded / clear hole types.

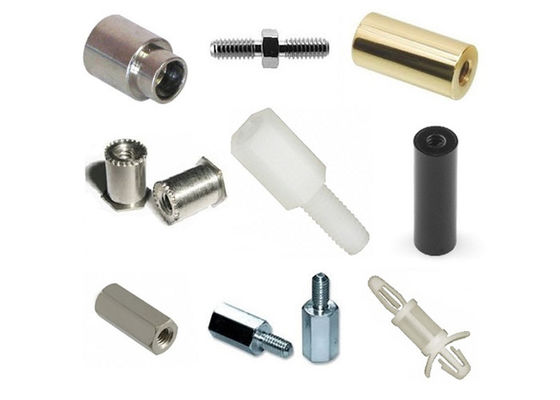

Spacers and Standoffs are two common types of positioning electronic hardware. They provide sturdy support, alignment and spacing to a variety of applications such as circuit board assemblies, panels and doors. Spacers and Standoffs are available in a variety of shapes, sizes and materials to meet the particular needs of your application. Round, hex, square, swage, female threads, male threads and even knurling for insert-like properties are all available. Non-magnetic and electrically neutral materials also help facilitate sensitive assembly requirements.



A Standoff is a fastener that is used to create space between two objects, often to properly position them. In the world of electronic compenents and electronic hardware, standoffs are typically used to space circuit boards, panels, doors or gears. Standoffs can be round, hexagonal or square in shape. They can have exterior knurling as well as swage characteristics. Female-Female or Double Female Standoffs can be fully threaded or partially threaded on each end. Male-Female Standoffs are also available. Standoffs are available in a variety of materials including aluminum, brass, plastic, steel and stainless steel.



Specifications:



A swage spacer is simply defined as an object that is used to create space between two object, often to properly position them. The style of parts are predominately used in curcuit board applications. Where the swage portion of the part is inserted (swaged) into previously mentioned board and another board is spaced properly. In the world of electronic compenents we typically see spacers used in a variety of situations. For instance one could space circuit boards, panels, doors or gears



Round or Hex
2-56 Thread x .156 O.D. (5/32")

Round / Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards



4-40 Thread x .187 O.D. (3/16")

Round / Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards



4-40 Thread x .250 O.D. (1/4")

Round / Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards



6-32 Thread x .250 O.D. (1/4")

Round / Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards


Applications:



• Security • Camera Systems
• Sirens • Remote Controls
• Medical • Telecommunication
• Medical Carts • Coupling Devices
• Computer • PCB mounting
• PC/104 Modules
• Industrial Equipment • Robotic
• Animatronic • Electronic • Military
• Government • Aerospace
• Power Supplies & Conditioning
• Fuel Distribution • Power Supplies
• Custom Screw Machine Hardware
• Control Enclosures
• Integration Systems
• Circuit Board Assembly

• Airline • Aircraft • Slot Machines
• Marine • Entertainment
• Power Enclosures
• Musical Instruments
• Signs • Food Supply • Furniture
• Vending Machine
• Climbing • Archery • Firearms
• Ski • Snow Board Equipment
• Instrumentation • Commercial
• Fabrication • Construction
• Custom Enclosures
• Electronic Enclosures
• Equipment Manufacturing
• Wire and Cable • Exhibits
• Knife Manufacturing
• & Many Other Industries





Round / Hex 3/8" Carbon Steel Swage Standoff Spacer Mounting Electronic Circuit Boards
