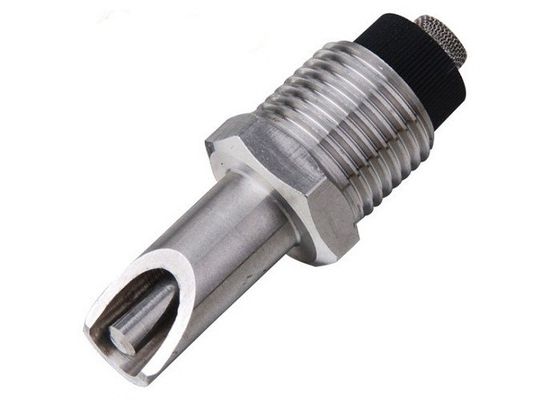

SUS 1/2" Threads Size M Duck - Billed Poultry Nipple Waterer Feeders 110mm

SUS 1/2" Threads Size M Duck-billed Pig Drinker Water Nipple Nipple Piglet Drinker As Hog Feeders 110mm Long

Quick Detail:

1. Commodity: pig nipple drinker

2. Material: stainless steel 201

3. Weight: 79g (804) and 105g (804-b)

4. Threads:  1/2" male (804) and 1/2" male (804-b)

5. Size: M (804) and M (804-b)

Description:

1. Size:
L : for big pigs like swine & sow
M : for Growth of the pig
S: for piglet
2. MATERIAL
We usually use stainless steel #201 make nipple drinker .
Also we can use the material According to your requirements like # 304 or 316
3. THREADS
Usually our products used threads G-1/2”or 3/8” or 3/4”
Also we can make threads BSP or NPT
4. PACKING
Conventional packing:25pcs / bag, 6 or 8 bags / carton .
Carton size : 28*24*12 cm ; 10-15 kgs /carton (According to different goods)

The greatest feature of pig nipple drinker is simple structure. It is composed by shell, mandril and steel ball. When pig wishes to drink, it pushes the mandril and the water goes through the gap of shell, mandril and steel ball. When pig stops pushing, the water pressure and the weight of steel ball and mandril will make them tight coupling, so the water will stop flowing immediately. This kind of pig drinker has strong filtration capacity for sands or other impurities. Nipple drinker must reduce the pressure when it is put into use, in order to avoid the water flow too fast for pig to drink.

Install Method of Piglet Nipple Drinker

The angle of installation is 45º-75º, and the terrain clearance for piglets is 25-30cm, for growing pigs ( 3-6 months’ old ) is 50-60cm, and for adult pigs is 75-85cm.


Specifications:

Applications:

Agricultural Animal Feeding

Competitive Advantage:

Competitive price

Quality approvals

Guarantee and warranty

Small orders are accepted

Best service and prompt delivery

Good products performance

International approvals

Manuafacturer rich experience
