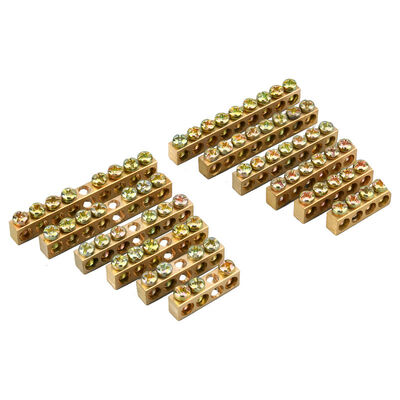

Tin-Plated Copper Ground Bar 5 7 13-Hole M6/M8 PCB Screw Terminal

Tin-Plated Copper Ground Bar 5 7 13-Hole M6/M8 Corrosion-Resistant Earthing Strip

What Are Ground Bars?

Ground bars, also known as grounding busbars or earth bars, are metallic strips or blocks with multiple connection points used to terminate and bond multiple grounding conductors in electrical systems. They serve as a central hub to maintain a common electrical potential, providing a low-resistance path for fault currents to dissipate safely into the earth. Ground bars are typically installed in electrical panels, control enclosures, data centers, and telecommunications rooms.

Materials

Surface Finish

1. Plain/Unfinished (Bare Copper)

2. Tin-Plated (Silver appearance, corrosion resistant)

3. Nickel-Plated

4. Silver-Plated

Specifications

1. Standard Lengths: 4.92" (125mm) to 12" (305mm)

2. Standard Cross-Sections: 1/4" x 2", 0.48" x 0.62"

3. Wire Range: #14 AWG to 2/0 AWG

4. Number of Ports: 6 to 12 terminals

5. Material Purity: 98% minimum conductivity copper

6. Temperature Range: -40°C to +105°C

7. Key Standards: UL 467 (Grounding and Bonding Equipment), CSA C22.2 No.41, ANSI/TIA-607-D, IEC 62305

Applications

1. Electrical panels and distribution boards

2. Control panels and industrial enclosures

3. Telecommunications rooms and data centers (BICSI/TIA compliant)

4. Switchgear and transformer installations

5. Lightning protection systems

6. Renewable energy systems (solar/wind)

7. Medical facilities and healthcare equipment

8. Marine and offshore installations

Best Practice Case Example

Scenario: Terminating multiple equipment grounding conductors in a commercial building's main electrical control panel requiring UL certification.

1. Selected Product: 12-Port Universal Grounding Bar (e.g., Panduit UGB2/0-414-12 or equivalent) .

2. Material: High-conductivity copper, 98% minimum .

3. Finish: Tin-plated (silver appearance) for corrosion resistance and low contact resistance .

4. Specifications: 8.28" (210mm) length; accepts #14 AWG to #4 AWG branch conductors and up to 2/0 AWG main grounding conductor; 12 wire ports .

5. Installation Data: Multiple mounting options available (bonding stand-offs, isolation stand-offs, or direct panel mount) ; suitable for 600V insulation rating when used with insulators .

6. Performance: Meets UL 467 and CSA 22.2 No.41 standards for grounding and bonding equipment. Provides verified low-resistance common bonding point for all panel equipment, ensuring safety compliance and proper fault current path. Tin-plated finish maintains conductivity while preventing galvanic corrosion between dissimilar metals, ensuring long-term reliability in mixed-material installations.
