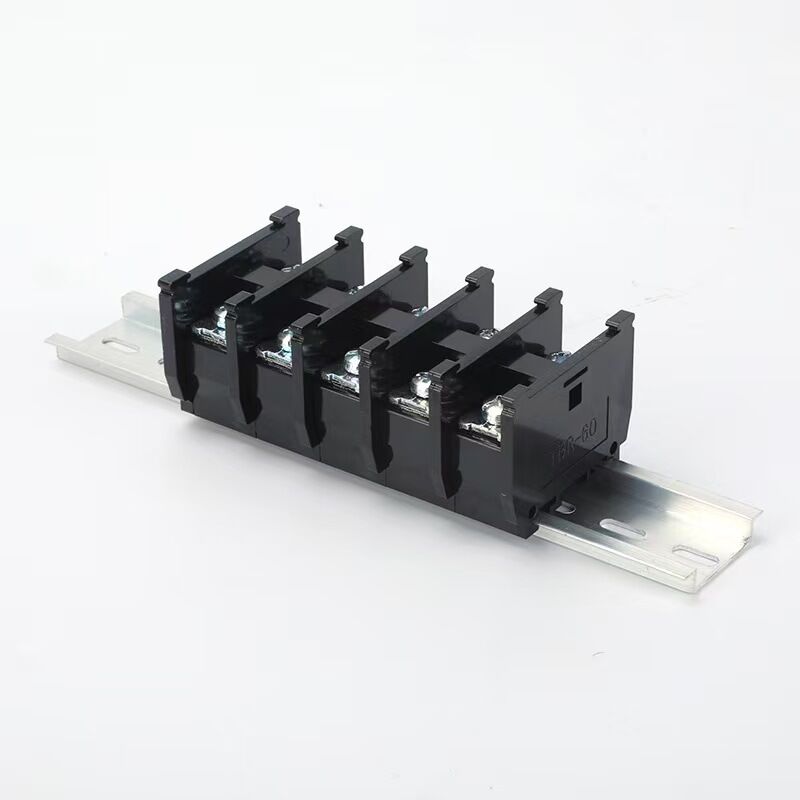

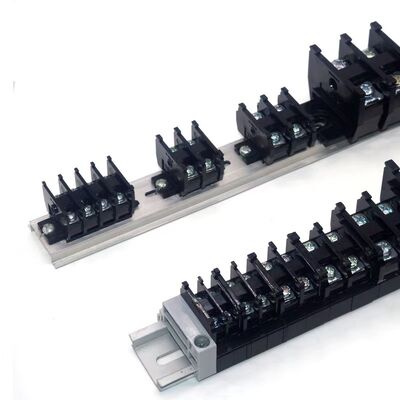

High Quality Terminal Block DIN Rail 600V 32A Screw Connection Copper Alloy Flame

High Quality Terminal Block DIN Rail 600V 32A Industrial Grade Screw Connection Copper Alloy Flame Retardant PA66

What is Terminal Block DIN Rail?

A DIN rail terminal block (also known as a terminal block for DIN rail or DIN rail mounted terminal block) is a modular, insulated electrical connector designed to mount securely onto standard DIN rails (most commonly TS35/35mm rails). Its primary function is to safely connect, distribute, and organize electrical wires within control cabinets, industrial panels, switchgear, and automation systems. The term "DIN" refers to Deutsches Institut für Normung (German Institute for Standardization), which established the global standards for these rails.

Key characteristics include a modular design allowing for easy assembly and customization, a compact structure for space-saving installation, clear marking options for circuit identification, and compliance with international safety standards like IEC 60947-7-1.

Materials of Terminal Block DIN Rail

Surface Treatment of Terminal Block DIN Rail

Specifications of Terminal Block DIN Rail

Applications in Terminal Block DIN Rail

Excellent Case Example

Project: High-Speed Packaging Line Control System Upgrade

Background:
A leading food and beverage company was experiencing frequent downtime on a critical high-speed packaging line due to disorganized and unreliable wiring in the main control cabinet. Troubleshooting electrical faults was time-consuming, and the existing terminal blocks were prone to loosening from constant machine vibration.

Challenge:
The company needed to completely rewire the control system during a planned two-week plant shutdown. The new system had to be highly reliable, easy to maintain, and accommodate future expansion for new sensors and safety devices. The environment involved constant vibration from high-speed motors and conveyors.

Solution:
The engineering team chose Weidmüller's W Series DIN rail mounted screw terminal blocks for their proven vibration resistance and comprehensive accessory system. The cabinet was redesigned using a modular approach.

Implementation Details:

1. Power Distribution: SAKDU 35 N (150A, 1000V) feed-through terminal blocks were used for the main 3-phase power supply entering the cabinet.

2. Motor Circuits: WDU 16 (76A, 800V) terminal blocks connected the variable frequency drives to the high-speed packaging motors. Screw clamps ensured secure connections despite constant vibration.

3. Control & Sensor Wiring: WDU 2.5 (32A, 500V) terminal blocks, occupying minimal space, were used for all 24V DC control and sensor signals. Integrated test points allowed technicians to quickly check circuit voltages without disconnecting wires.

4. Protective Earth: WPE 35 (green-yellow) ground terminal blocks were installed for every incoming and outgoing circuit, ensuring a clear and safe path to ground, compliant with IEC 60947-7-2.

5. Circuit Protection: WSI 6 (fuse terminal blocks) with 5x20mm fuses protected individual sensor power supplies, making fuse replacement quick and safe.

6. Organization & Identification: Every terminal block was labeled using the MultiMark marking system with clear, durable tags. End brackets and partition plates isolated different voltage zones (400V AC power vs. 24V DC control). Cross-connection jumpers efficiently distributed common potentials (e.g., 24V DC common) across multiple terminals.

7. Future Expansion: 15% spare terminal blocks were installed at the end of each section, pre-mounted on the DIN rail, allowing for easy addition of new devices in the future.

Results:

• Reliability: The vibration-resistant screw clamps eliminated connection-related faults. The line has operated for over 3 years with zero failures attributed to the terminal blocks.

• Maintainability: Troubleshooting time was reduced by over 60% thanks to clear labeling, integrated test points, and logical physical layout. The maintenance team could quickly identify and resolve issues.

• Efficiency: The organized wiring and use of accessories like jumper bars reduced the overall wiring time by approximately 25% compared to previous methods.

• Safety: Clear separation of power and control circuits, combined with proper grounding on green-yellow terminals, enhanced overall system safety for maintenance personnel.

• Scalability: The pre-installed spare terminals allowed for two subsequent sensor upgrades without any additional DIN rail mounting or major rewiring, saving significant time and cost.

Conclusion: The strategic selection and implementation of high-quality DIN rail terminal blocks transformed a problematic control system into a model of reliability, safety, and maintainability, directly contributing to increased production line uptime and reduced maintenance costs.
